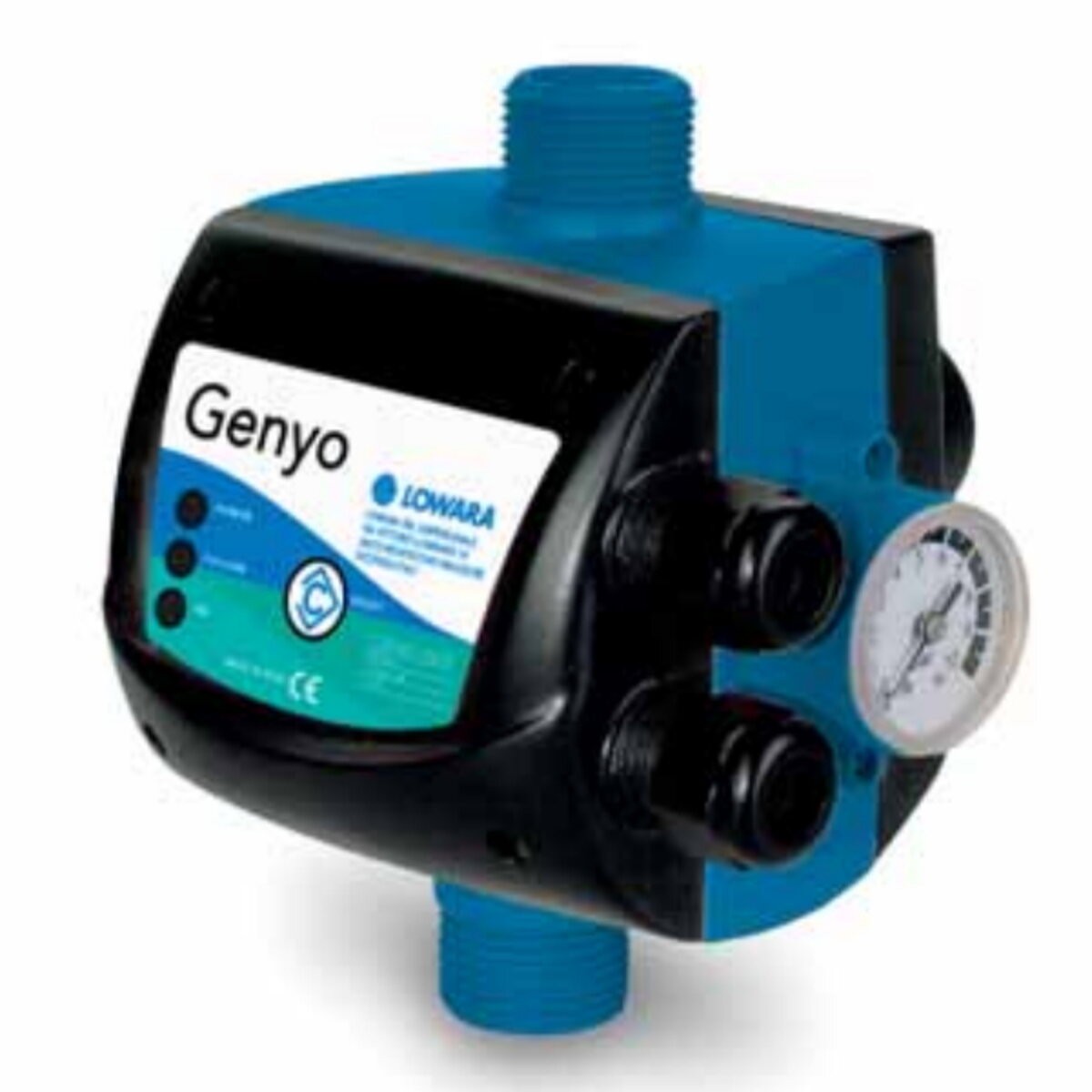

PRESSURE REGULATOR SERIES GENYO 8A/F22 LOWARA

The GENYO LOWARA pressure switch belongs to the range of compact pressure flow switch electronic devices for the control and protection of single-phase electric pumps created for residential domestic applications.

GREAT INSTALLATION AND USE MODULARITY

The GENYO presscontrol is controlled by an electronic circuit and is made up of a diaphragm and antagonist spring system integrated with flow and pressure sensors. It allows you to automatically control the start-up and shutdown of the electric pump according to the actual demand for water, avoiding pressure variations when using a constant working point. The GENYO presscontrol represents a convenient alternative to traditional autoclaves with membrane vessels as it does not require any maintenance.

On the front of the GENYO presscontrol there are three very important LED signals : green light POWER presence of power supply voltage; red light FAILURE indicates an alarm condition; yellow light ON indicates pump running.

The GENYO presscontrol has a particular hydraulic structure in non-toxic thermoplastic material reinforced with glass fibre; the membrane and the gaskets are in special natural rubber which guarantee a high degree of protection (IP 65). The non-return valve is integrated in one of the sensors with magnet and the electronic board for control, protection and connections is also integrated inside. Its accumulation system allows the containment of an adequate water reserve while limiting the overall dimensions. The sensors are made of high resistance thermoplastic material containing hermetically inserted magnets with ultrasonic welding.

APPLICATIONS

The GENYO presscontrol can be used in various sectors: domestic pressurization (single and multi-family houses), small irrigation and gardening, civil water systems (bathing establishments, campsites and sports facilities).

TECHNICAL FEATURES

Supply voltage: single-phase 220-240V

Frequency: 50/60Hz

Maximum current: 8 inductive

Operating temperature 0 60C

Maximum working pressure: 10 bar

Maximum flow rate: 10m3/h

Degree of protection: IP65

Fixed starting pressure: F12: 1.2 bar

F15: 1.5 bar F22: 2.2 bar Operating temperature: 060C

Maximum pressure: 10 bars

Maximum flow rate: 10 m3 /h (see pressure drop diagram)

Manual restart Input output connections: R1 Pressure gauge (010 bar)

Power cable and plug / motor: H07RN-F 3G1 – L = 1.5 m with Schuko plug* / H07RN-F 3G1 – L = 0.5 m with terminals (in the version with cables) * UK, AU plug available on request

WARRANTY

The guarantee is the Official Lowara Xylem Water Solution one and has a duration of 24 months.
