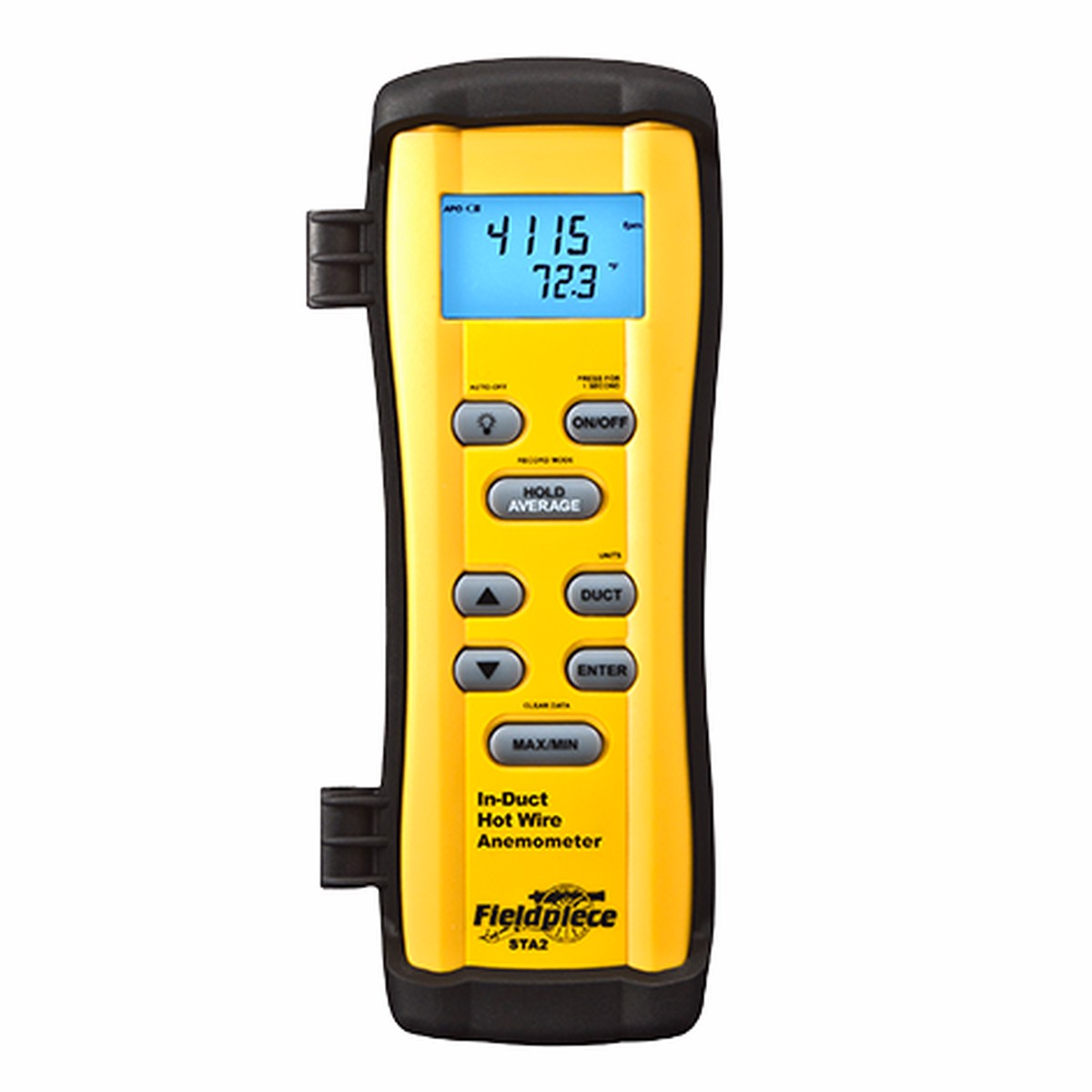

Fieldpiece STA2 Anemometer Hot Wire

Ditch the hood.

The STA2 is a Hot-wire Anemometer built for the HVACR professionals air balancing needs. The compact probe tip makes measuring air velocity directly in the duct a breeze. Its great for traversing a duct and automatically calculating CFM without the hassle and expense of a bulky hood. The 38 telescoping probes laser etched ruling and flattened edges allows techs to locate proper measurement points within a duct, and ensures that the probe is properly aligned.

This in duct hot-wire anemometer quickly calculates CFM from air velocity and free area. And with the intuitive interface, the STA2 makes it easy to capture the correct data.

• In-duct air balancing with fast response time
• Minimizes turbulence effect
• Hands free testing
• 38 telescoping probe in in-duct traversing
• Dual display shows combo of real-time CFM, air velocity, or temp

Specifications:

• Measures air velocity and temperature
• Calculates CFM
• Slim 38 telescoping probe for in duct traversing
• Fast response tim
• Dual display for combo of real-time CFM, air velocity, or temp
• Depth and direction indicators
• Minimizes turbulence effect with time/test point averages
• Hands-free testing with stabilizing cone and magnetic hanger
• Accuracy: Stated accuracy @ 73F9F (23C5C),<90%RH
• Temperature coefficient: 0.1 x (specified accuracy) per C for 0C to 18C, 28C to
• 50C (32F to 64F,82F to 122F)
• Operating environment: -4F to 122F (-20C to 50C) at <75%RH
• Storage temperature: -4F to 140F (-20C to 60C), 0 to 80% RH (with battery removed)
• Battery: 9V
• Battery life: 20-35 hours approx. (alkaline)
• Battery indication: is displayed when the battery voltage drops below the operating level.
• Auto Power off: after 15 minutes of inactivity if APO is active.
• Over range: OL or -OL is displayed
• Dimensions: 7.2 in (H) x 2.5 in (W) x 1.3 in (D) [185mm (H) x 65mm (W) x 35mm (D)]
• Weight: 12 oz. (340g) including battery
• Sensor type: Micro-glass bead thermistor.
• Resolution: 1 fpm (0.01 m/s)
• Range: 40-3960 fpm (0.20-20.00 m/s)
• Accuracy: (5%+1 dgt) reading or (1%+1dgt)full scale
• Units: fpm, m/s, km/hr, mph
• Temperature Sensor type: Thermistor
• Range: -4F to 140F (-20C to 60C)
• Resolution: 0.1C, 0.1F
• Accuracy:
  1.0F for 32F to 113F
  2.0F for -4F to 32F, 113F to 140F
  0.5C for 0C to 45C
  1.0C for -20C to 0C, 45C to 60C

What’s Included:

• Hot-wire Anemometer STA2

• Stabilizing Cone

• Blow-molded Case with Padding

User Manual
